Red Series®
additive fusion
Solution

Combine integrated software, additive manufacturing and molding to unleash the potential of cost-competitive manufacturing of continuous fiber composites in high volumes.

Arrow Down RedArrow Down White
Talk to an expert
Chat Icon
Talk to an expert

IDEAL FOR HIGH PRODUCTION VOLUME

High-performance composites are ideal for serial production of end-use parts. You can profit from an optimised design as well as substantial cost savings.

An arrow goes to the top right corner. Below the arrow are three bars with increasing size to indicate growth.

Up to 80% weight and 50% cost savings in series production

icon of pencil

Design and manufacture complex parts in no time

infinite symbol with red circle and white tick

High reproducibility - Series production quality

dollar symbol in white circle with downwards red arrow

Print end-use parts overnight, at a fraction of the costs

Quickly come up with highly optimised designs

Fibrify® enables the user to quickly define the fibre designs and fully optimise them by directly exporting the composite parts to commercially available FEA simulation packages for verification of their structural ability.

Print Strong and Lightweight Parts

Additive Fusion Technology does not compromise part quality by combining state of the art additive manufacturing equipment (Build Module) with advanced post processing (Fusion Module) and results in parts that can be used in the most extreme conditions.

Collaborate closely

Besides advanced software and hardware, 9T Labs supports you with our application engineering team to jointly transform your series production ideas into production cases.

Build module

white red and black outlined squared

Print Volume - 350mm x 270mm x 250mm

icon of printer

Print at 400°C

thermometer icon

Heated material storage 100°C to avoid moisture intake

icon of molecule

Print high-performance composites
• up to 60% fiber volume content
• Matrix: PEEK, PEKK, PPS, PA12, bio-based PA
• Continuous fibers: carbon, glass, basalt

More about our additive manufacturing Build Module
Arrow Right RedArrow Right White
9T Labs build module for 3d printing of carbon composites

Fusion module

white red and black outlined squared

Fusion Volume - 350mm x 270mm x 250mm

Icon Temperature

Molding temperature up to 400°C

red cog with black circular arrow

Active pressure regulation > 20 bar

More about our advanced post processing Fusion Module
Arrow Right RedArrow Right White
9T labs fusion module for additive fusion technology

PRODUCE WITH ADDITIVE FUSION TECHNOLOGY™

Two things are important to produce a lightweight structural part: Optimal fiber layup and excellent consolidation. The Additive Fusion Technology (AFT) allows the automated manufacturing of optimized part designs coming from the Fibrify® software by first using the Build Module to produce a fiber layup.

At this stage, the resulting preform part does not yet fulfill the consolidation quality required of a structural composite part, which is achieved by the Fusion Module, applying heat and pressure to fuse the preform part together. This proprietary two-stage process ensures part quality, reproducibility and cost competitiveness for your series production applications.

Material Structure Before Fusion
Material Structure After Fusion

Void content representing the imperfections inside a part and the short beam strength representing the bonding between adjacent layers are two evaluation criteria used to measure the consolidation quality.

FIBRIFY® platform

Fibrify® Design Suite enables you to quickly define the fiber designs. You can fully optimise them by directly exporting the composite parts to commercially available FEA simulation packages for verification of their structural ability. Fibrify® Production lets you control, monitor and manage your equipment in real-time.

More about our software platform
Arrow Right RedArrow Right White

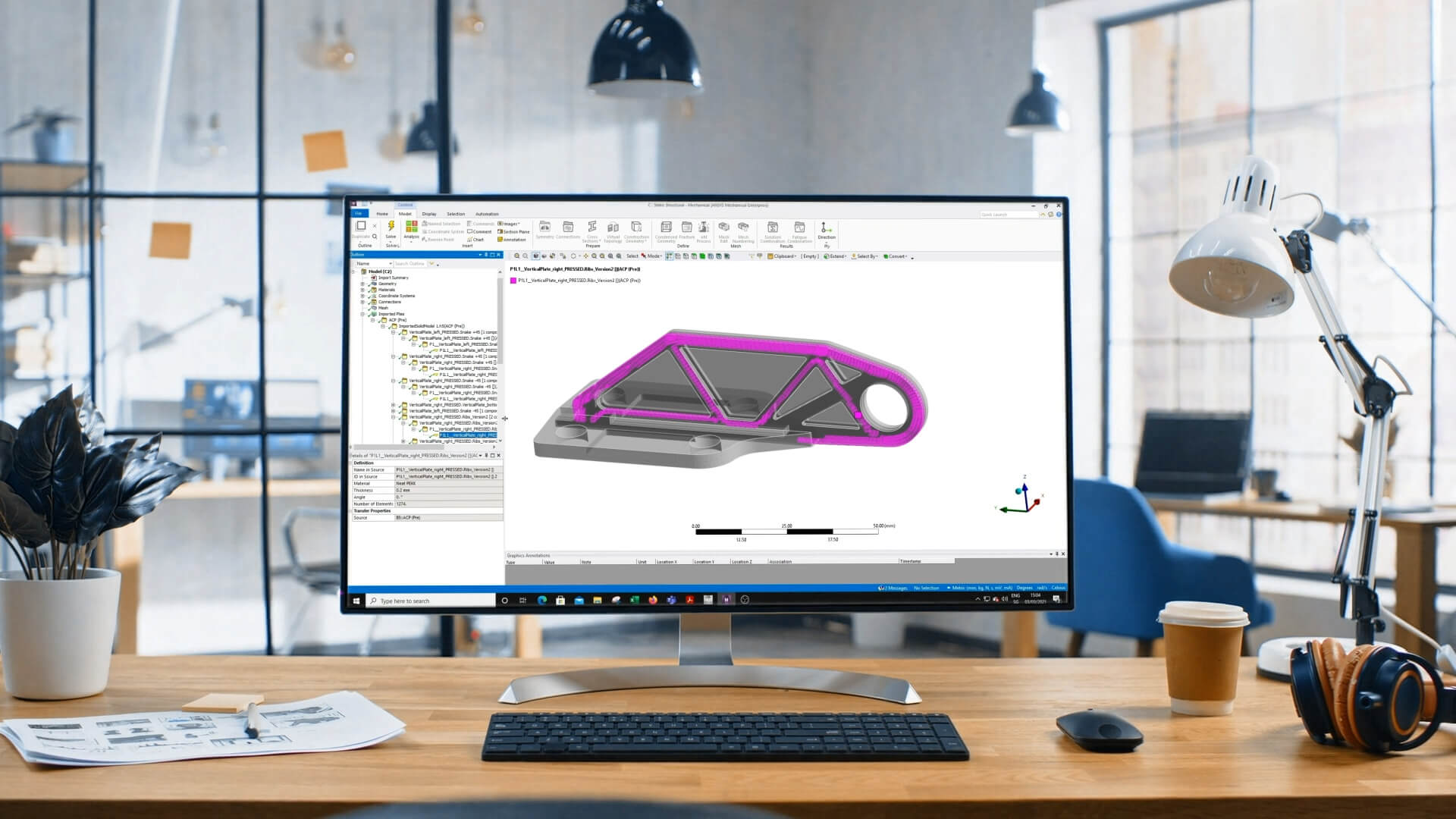

Part displayed on a PC screen

Engineering Service

Profit from 9T Labs’ composite expertise and get supported from your very first idea to your final produced part in high volumes. 9T Labs helps you identify the right applications, perform technical and economical feasibility studies, design and simulate parts and actually produce them for your perfect production ramp-up.

Hardware

USE THE highest PERFORMANCE COMPOSITES

The proprietary 9T Labs’ technology allows the use of industry-standard materials. The current portfolio includes high-performance polymer options reinforced with the strongest fibers.

Material Details

  • — Continuous fibers: carbon, glass, basalt
  • — Matrix: PEEK, PEKK, PPS, PA12, bio-based PA
  • — 60% fiber volume content
  • — Void content < 1%
feather icon
LIGHTWEIGHT
red and clear puzzle pieces
HIGH STRENGTH
AND STIFFNESS
tree diagram icon
DIMENSIONAL
STABILITY
x-ray icon
XRAY
TRANSPARENCY
shield icon with tick in the middle
CORROSION
RESISTANCE
More on high performance carbon composites
Arrow Right RedArrow Right White

training

For us, being technology leaders means accompanying you on your path to success by offering know-how at every level. Our training targets a wide range of users, from machine operators and application specialists to product managers, providing content that is always relevant to you.

Our Alternative solution

We invented a new way to use carbon composites in industrial-grade 3D printing. It is ideal for prototypes, jig & fixtures and one-offs.

Red Series
Industrial 3D Printing Solution

With our patented 3D printing technology we can provide completely new ways to use carbon as a better alternative to conventional materials.

Build Module
  • Software
  • Material
  • Training
More about our industrial-grade 3D printing solution
